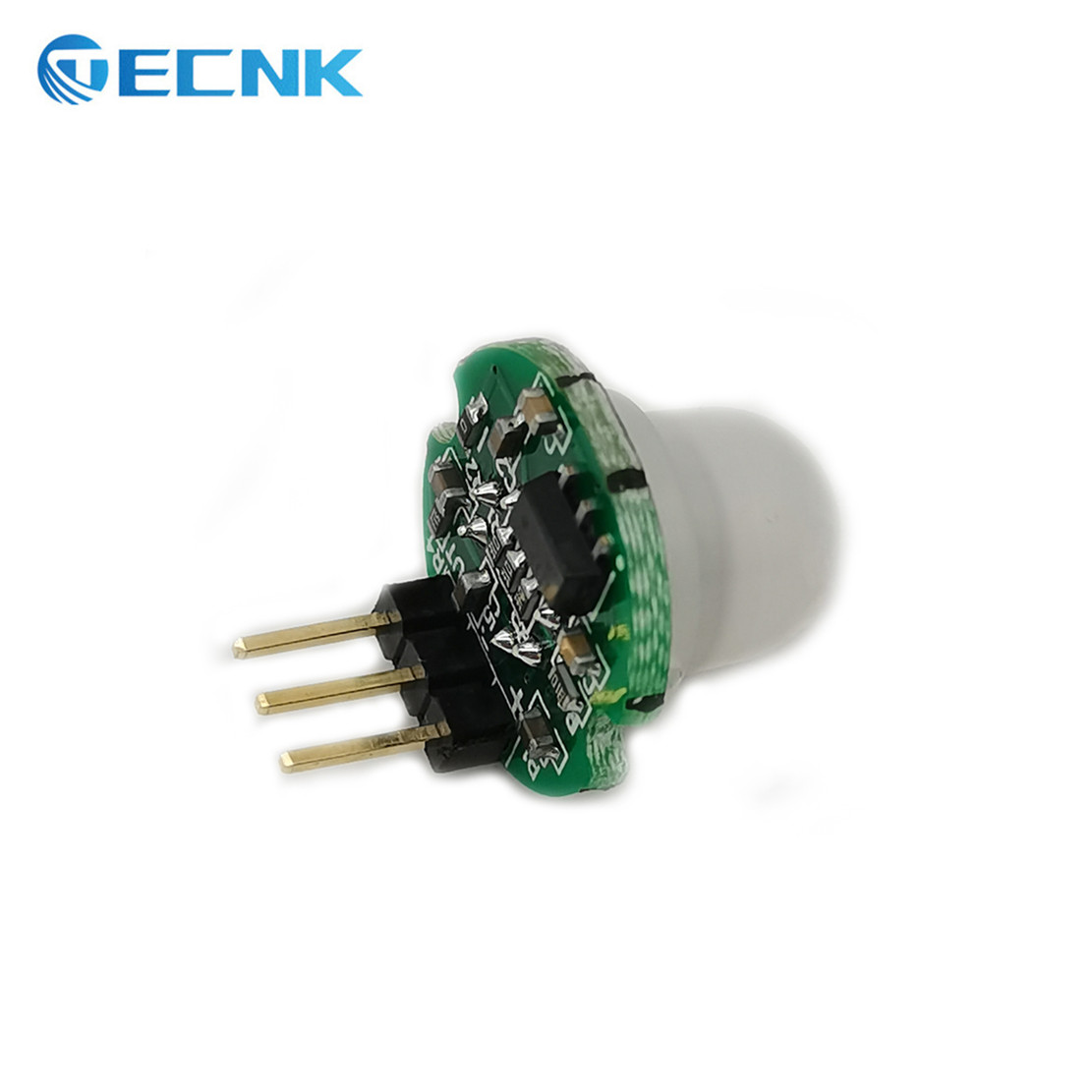

Product Description
C MS0001 series of motion sensor from Coleman Controls are optimized to human body detection.C MS0001 is small,inexpensive,low power,easy to use and don’t wear out. It is used in burglar alarms and automatically activated lighting systems.
Product Features
| Product ID | C MS0001 |
| Working voltage | DC3.7V-22V |
| Quiescent current | 21uA |
| Output level | high level 3.2V, low level 0V. |
| High level delay time | 2~3600 seconds |
| Induction distance | 4-6 meters |
| Working temperature | -20-+50℃ |
| Induction angle | 110 degrees |
| Circuit board size | 16.2mm×1.6mm |
| Approval | CE |
